Distillers, water deionizers and ultrapure water systems

Details: Parent Category: Product-Services

Marvel Ltd offers water purifying systems for all types of laboratory needs. Starting with water for glass washing to such with the quality of reagent(ultra clear water) for laboratory analysis.

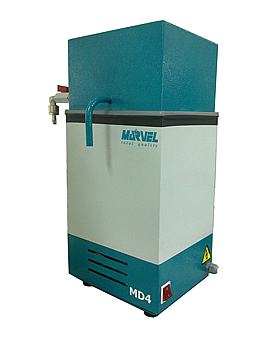

1. MD4 – Automatic destillator for water without tank

The destillator meets the requirements of international pharmatic requirements. The evaparator, the condensor and the heaters elements are made of rustless steel.

Characteristics:

conductivity aproximately 2.3 μS/sm at 20 ºС ;
capacity of destillator 4 l/h;
necessary quality of cold water: ~ 40 l/h;
energy saver function by menas of destillation of the heated water from the cooling system;
system for automatic turning off of heaters elements at less water;
leading of СО₂ from the system through the pipes in the upper part of the body;
outer dimensions: w/l/h: 300/250/510 mm;
capacity: 3.0 кW;
weight: 10 кg;
power cable;
power supply: 230 V/50-60 Hz;

Marvel also offers and models MD2 (capacity of destillator 2 l/h) and MD2R (automatic water destillator with tank).

MD4R – Automatic destillator for water with tank

The construction is suitable for mounting on wall or on table. The destillator meets the requirements of international pharmatic requirements. The evaparator, the condensor and the heaters elements are made of rustless steel.

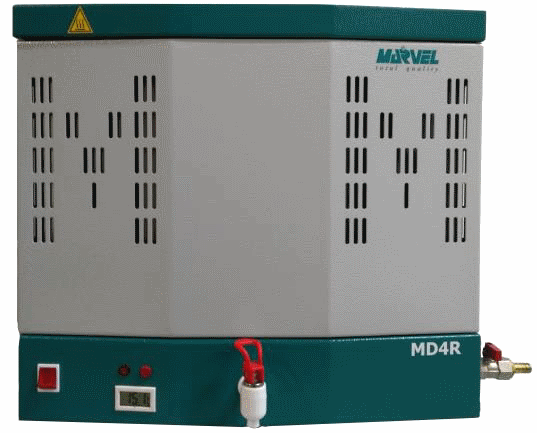

Marvel MD4R

Characteristics:

conductivity aproximately 2.3 μS/sm at 20 ºС ;
capacity of destillator 4 l/h (or 8 l/h for MD8R);
capacity of reservoir 8 l/h (or 16 l/h for MD8R);
necessary quality of cold water: ~ 48 l/h (~ 72 l/h for MD8R);
min.pressure of water supply: 2.5 bar;
max.pressure of water supply: 7.0 bar;
energy saver function by menas of destillation of the heated water from the cooling system;
system for automatic turning off of destiler when the reservoir is full and automatic start at next destiled water consumption;
system for automatic turning off of heaters elements at less water;
integrated thermometer for reading the temperature of the cooling water;
drainage of the evaporator through an outlet tap on the left side of housing;
leading of СО2 from the system through the pipes in the upper part of the body;
outer dimensions: w/l/h MD2R and MD4R: 620/330/460 mm;
outer dimensions: w/l/h MD8R: 780/410/540 mm;
capacity: 2.0 or 3.150 kW (6 kW for MD8R);
power supply: 230 V/50-60 Hz (380V/50-60 Hz for MD8R );

Distillers with a capacity of up to 18 l / h are available on request!

For more information: tel. 00359 32/ 678026 or e-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.
